ProfessionalOnline Double-Conversion

Infinity Series 1–3KVA

Name: Energia Max Infinity Series 1–3KVA
Brand: Energia Max

True double-conversion online UPS with 0ms transfer and 0.9 output power factor.

Request pricing Download datasheet

Models

T1000S
T1000L
T2000S
T2000L
T3000S
T3000L

Topology: Online double-conversion
Output waveform: Pure sine wave
Transfer time: 0 ms
Output power factor: 0.9
Input window: 100–300 VAC
Efficiency: 89–91% inverter mode

Overview

About the Infinity Series

Infinity Series 1–3KVA is a true double-conversion online UPS built for equipment that cannot tolerate a break in supply. A 100–300VAC input window absorbs badly regulated mains and generator supply, while the inverter delivers pure sine wave output at ±1% regulation with 0ms transfer to battery. The 0.9 output power factor delivers up to 12.5% more usable watts than a comparable 0.8pf unit, and both standard (internal battery) and long-run (external battery) variants are available.

Key features

What the unit does

True double-conversion design with high adaptability to harsh mains conditions
Multiple battery configurations: 1K 24V/36V, 2K 48VDC/72VDC, 3K 72VDC
0.9 output power factor — up to 12.5% more usable power than a traditional 0.8pf unit
Compact footprint requiring minimal installation space
Programmable LCD display for quick UPS parameter configuration
Flexible communications for easy management: RS232, USB, EPO and mini slot
CE certified

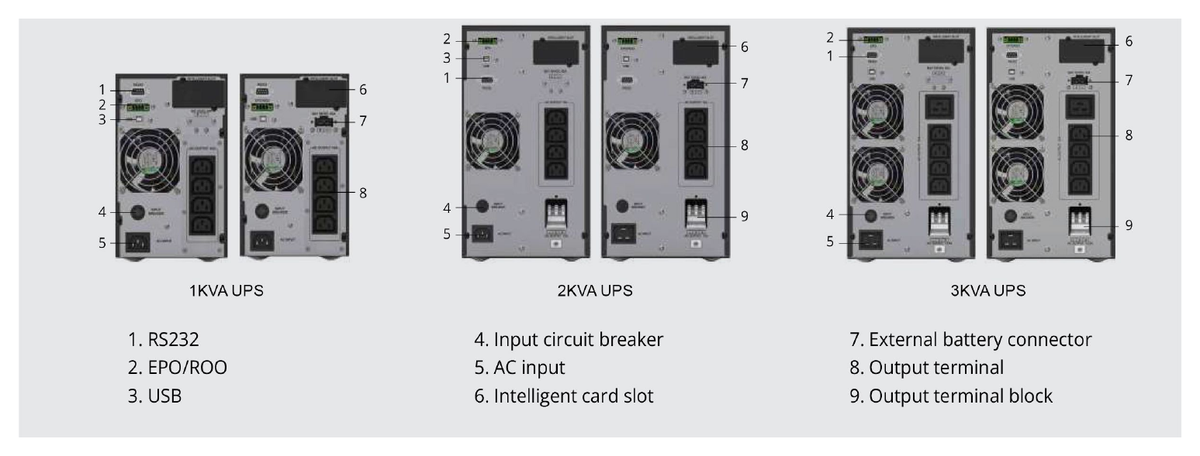

Connections

Rear panel

01RS232
02EPO / ROO
03USB
04Input circuit breaker
05AC input
06Intelligent card slot
07External battery connector
08Output terminal
09Output terminal block

Specifications

Full specification

Swipe horizontally to compare models.

Full specifications for Infinity Series 1–3KVA, 1KVA – 3KVA, by model
Specification	T1000S	T1000L	T2000S	T2000L	T3000S	T3000L
Capacity
VA / W	1000VA/900W	1000VA/900W	2000VA/1800W	2000VA/1800W	3000VA/2700W	3000VA/2700W
Input
Rated voltage	208 / 220 / 230 / 240 VAC (230V default)	208 / 220 / 230 / 240 VAC (230V default)	208 / 220 / 230 / 240 VAC (230V default)	208 / 220 / 230 / 240 VAC (230V default)	208 / 220 / 230 / 240 VAC (230V default)	208 / 220 / 230 / 240 VAC (230V default)
Input voltage range	100 – 300 VAC	100 – 300 VAC	100 – 300 VAC	100 – 300 VAC	100 – 300 VAC	100 – 300 VAC
Frequency range	45–55 Hz / 54–66 Hz	45–55 Hz / 54–66 Hz	45–55 Hz / 54–66 Hz	45–55 Hz / 54–66 Hz	45–55 Hz / 54–66 Hz	45–55 Hz / 54–66 Hz
Input wiring	Single phase with ground	Single phase with ground	Single phase with ground	Single phase with ground	Single phase with ground	Single phase with ground
Output
Output power factor	0.9	0.9	0.9	0.9	0.9	0.9
Nominal output voltage	208 / 220 / 230 / 240 VAC (230V default)	208 / 220 / 230 / 240 VAC (230V default)	208 / 220 / 230 / 240 VAC (230V default)	208 / 220 / 230 / 240 VAC (230V default)	208 / 220 / 230 / 240 VAC (230V default)	208 / 220 / 230 / 240 VAC (230V default)
Voltage regulation	±1%	±1%	±1%	±1%	±1%	±1%
Frequency range (battery mode)	50/60Hz ±0.05Hz	50/60Hz ±0.05Hz	50/60Hz ±0.05Hz	50/60Hz ±0.05Hz	50/60Hz ±0.05Hz	50/60Hz ±0.05Hz
Overload	100%–105% continuous; 60 sec @ 105%–130% rated load	100%–105% continuous; 60 sec @ 105%–130% rated load	100%–105% continuous; 60 sec @ 105%–130% rated load	100%–105% continuous; 60 sec @ 105%–130% rated load	100%–105% continuous; 60 sec @ 105%–130% rated load	100%–105% continuous; 60 sec @ 105%–130% rated load
Voltage distortion (THDv)	<2% @ linear load	<2% @ linear load	<2% @ linear load	<2% @ linear load	<2% @ linear load	<2% @ linear load
Output waveform	Pure sine wave	Pure sine wave	Pure sine wave	Pure sine wave	Pure sine wave	Pure sine wave
Parallel operation	N/A	N/A	N/A	N/A	N/A	N/A
Efficiency
Inverter mode	89%	89%	90%	90%	91%	91%
Battery
Battery type	VRLA	VRLA	VRLA	VRLA	VRLA	VRLA
Internal battery	7Ah / 9Ah	N/A	7Ah / 9Ah	N/A	7Ah / 9Ah	N/A
Number of internal batteries	2	N/A	4	N/A	6	N/A
Rated battery voltage	24VDC	36VDC	48VDC	72VDC	72VDC	72VDC
Charging current	1A	4A	1A	4A	1A	4A
Recharging time (90%)	5 hours	N/A	5 hours	N/A	5 hours	N/A
Transfer time
Battery mode ↔ inverter mode	0 ms	0 ms	0 ms	0 ms	0 ms	0 ms
Inverter mode ↔ bypass mode	<4 ms	<4 ms	<4 ms	<4 ms	<4 ms	<4 ms
ECO mode ↔ battery mode	<10 ms	<10 ms	<10 ms	<10 ms	<10 ms	<10 ms
Interface & display
Display	Segment LCD	Segment LCD	Segment LCD	Segment LCD	Segment LCD	Segment LCD
Audible alarm	Yes	Yes	Yes	Yes	Yes	Yes
RS232 / USB	Yes	Yes	Yes	Yes	Yes	Yes
External slot	Yes — optional NMC card / CMC Modbus card / AS400 card	Yes — optional NMC card / CMC Modbus card / AS400 card	Yes — optional NMC card / CMC Modbus card / AS400 card	Yes — optional NMC card / CMC Modbus card / AS400 card	Yes — optional NMC card / CMC Modbus card / AS400 card	Yes — optional NMC card / CMC Modbus card / AS400 card
Emergency Power Off (EPO)	Yes	Yes	Yes	Yes	Yes	Yes
Physical & environment
Dimensions (W×H×D)	144 × 224 × 325 mm	144 × 224 × 325 mm	190 × 323 × 368 mm	190 × 323 × 368 mm	190 × 323 × 368 mm	190 × 323 × 368 mm
Operating temperature	0–40 °C	0–40 °C	0–40 °C	0–40 °C	0–40 °C	0–40 °C
Noise level	<50 dB (ISO 7779, at front, 1 m distance, without buzzer)	<50 dB (ISO 7779, at front, 1 m distance, without buzzer)	<50 dB (ISO 7779, at front, 1 m distance, without buzzer)	<50 dB (ISO 7779, at front, 1 m distance, without buzzer)	<50 dB (ISO 7779, at front, 1 m distance, without buzzer)	<50 dB (ISO 7779, at front, 1 m distance, without buzzer)
Compliance
Regulation	CE	CE	CE	CE	CE	CE

Specifications are taken from the current Energia Max datasheet. Due to continuous product improvement, specifications are subject to change without notice.
