Energia Max
High-CapacityOnline Double-Conversion

Infinity Series 6–10KVA

94% double-conversion efficiency, 98% in ECO mode, with optional 3-unit parallel operation.

Request pricingDownload datasheet
Infinity Series 6–10KVA UPS, 6KVA – 10KVA

Models

  • T6000S
  • T6000L
  • T10000S
  • T10000L
Topology
Online double-conversion
Efficiency
94% / 98% ECO
Transfer time
0 ms
Max power factor
0.9
Parallel
Up to 3 units (optional)
Monitoring
WinPower software

Overview

About the Infinity Series

Infinity Series 6–10KVA extends true online protection to server rooms, comms rooms and light industrial plant. Double-conversion efficiency reaches 94% and ECO mode 98%, cutting the energy overhead of always-on protection. A 185–275VAC input window with linear derating to 50% load at 120VAC keeps the load supported on unstable mains or generator supply, and up to three units can be paralleled with the optional parallel card for capacity or N+1 redundancy.

Key features

What the unit does

  • True double-conversion design with high adaptability to harsh mains conditions
  • 0.9 output power factor
  • High efficiency for energy saving, with energy-saving ECO mode support
  • Intelligent communication slot enables remote monitoring (optional)
  • Wide input voltage and frequency range
  • Parallel operation available with parallel card — maximum 3 units (optional)
  • CE compliant, IEC/EN62040 certified

Connections

Rear panel

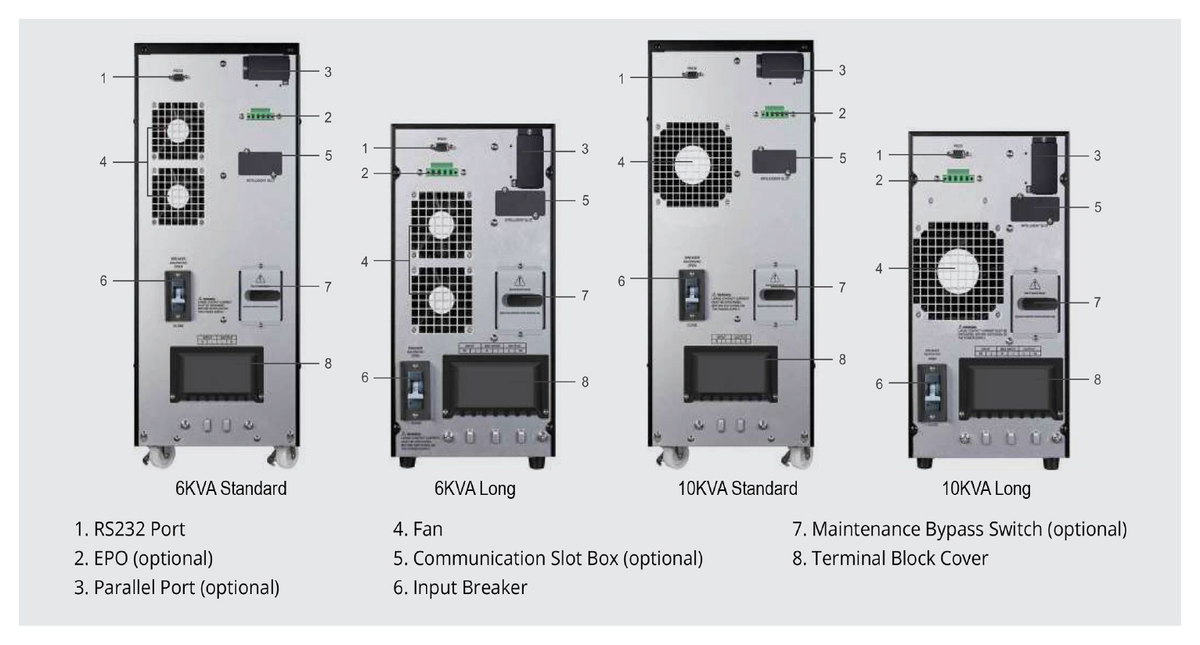

Rear connections of the Infinity Series 6–10KVA UPS
  1. 01RS232 port
  2. 02EPO (optional)
  3. 03Parallel port (optional)
  4. 04Fan
  5. 05Communication slot box (optional)
  6. 06Input breaker
  7. 07Maintenance bypass switch (optional)
  8. 08Terminal block cover

Specifications

Full specification

Swipe horizontally to compare models.

Full specifications for Infinity Series 6–10KVA, 6KVA – 10KVA, by model
SpecificationT6000ST6000LT10000ST10000L
Capacity
VA / Watt6000VA/5400W6000VA/5400W10000VA/9000W10000VA/9000W
Efficiency
Double-conversion mode94%94%94%94%
ECO mode98%98%98%98%
Input
Voltage range185–275VAC @ 100% load; 120–185VAC derating to 50% load, linear185–275VAC @ 100% load; 120–185VAC derating to 50% load, linear185–275VAC @ 100% load; 120–185VAC derating to 50% load, linear185–275VAC @ 100% load; 120–185VAC derating to 50% load, linear
Rated frequency50/60 Hz50/60 Hz50/60 Hz50/60 Hz
Frequency range40–70 Hz (46–54 / 56–64 Hz @ load >60%)40–70 Hz (46–54 / 56–64 Hz @ load >60%)40–70 Hz (46–54 / 56–64 Hz @ load >60%)40–70 Hz (46–54 / 56–64 Hz @ load >60%)
Input connectionHardware terminal connectionHardware terminal connectionHardware terminal connectionHardware terminal connection
Output
Rated voltage208 / 220 / 230 / 240 VAC (derating to 90% load @ 208V)208 / 220 / 230 / 240 VAC (derating to 90% load @ 208V)208 / 220 / 230 / 240 VAC (derating to 90% load @ 208V)208 / 220 / 230 / 240 VAC (derating to 90% load @ 208V)
Rated frequency50/60 Hz50/60 Hz50/60 Hz50/60 Hz
Maximum power factor0.90.90.90.9
Voltage accuracy±1%±1%±1%±1%
Voltage distortion (THDv)<2% @ linear load, <4% @ non-linear load<2% @ linear load, <4% @ non-linear load<2% @ linear load, <4% @ non-linear load<2% @ linear load, <4% @ non-linear load
Transfer time (line ↔ battery)0 ms0 ms0 ms0 ms
Crest ratio3:1 max3:1 max3:1 max3:1 max
Overload (line mode)105%<load≤125% for 1 minute; 125%<load≤150% for 30 seconds; load>150% for 0.5 seconds105%<load≤125% for 1 minute; 125%<load≤150% for 30 seconds; load>150% for 0.5 seconds105%<load≤125% for 1 minute; 125%<load≤150% for 30 seconds; load>150% for 0.5 seconds105%<load≤125% for 1 minute; 125%<load≤150% for 30 seconds; load>150% for 0.5 seconds
Output connectionHardware terminal connectionHardware terminal connectionHardware terminal connectionHardware terminal connection
Battery & charger
Battery voltage180VDC192VDC192VDC192VDC
Inbuilt battery type7Ah / 9AhN/A7Ah / 9AhN/A
Charging current1.2A4A1.2A4A
Recharging time (90%)7 hoursN/A7 hoursN/A
Other working modes
CVCFYes (derating to 60% load)Yes (derating to 60% load)Yes (derating to 60% load)Yes (derating to 60% load)
ParallelOptional — maximum 3 unitsOptional — maximum 3 unitsOptional — maximum 3 unitsOptional — maximum 3 units
Interface & display (HMI)
DisplayLCDLCDLCDLCD
USBNoNoNoNo
RS232YesYesYesYes
EPOOptionalOptionalOptionalOptional
Intelligent slotOptionalOptionalOptionalOptional
Monitor softwareWinPowerWinPowerWinPowerWinPower
Physical & environment
Dimensions (W×D×H)248 × 500 × 616 mm212 × 500 × 420 mm248 × 500 × 616 mm212 × 500 × 420 mm
Net weight59 kg15 kg63 kg16 kg
Operating temperature0–40 °C0–40 °C0–40 °C0–40 °C
Relative humidity20–90%20–90%20–90%20–90%
Operating altitude0–3000 m (derating 1% every 100 m above 1000 m)0–3000 m (derating 1% every 100 m above 1000 m)0–3000 m (derating 1% every 100 m above 1000 m)0–3000 m (derating 1% every 100 m above 1000 m)
Acoustic noise<50 dB<50 dB<50 dB<50 dB
Compliance
Certification / standardCE, IEC/EN62040CE, IEC/EN62040CE, IEC/EN62040CE, IEC/EN62040
EMI — conduction / radiationC3C3C3C3
EMS — ESDIEC61000-4-2, Level 3IEC61000-4-2, Level 3IEC61000-4-2, Level 3IEC61000-4-2, Level 3
EMS — RSIEC61000-4-3, Level 3IEC61000-4-3, Level 3IEC61000-4-3, Level 3IEC61000-4-3, Level 3
EMS — EFTIEC61000-4-4, Level 4IEC61000-4-4, Level 4IEC61000-4-4, Level 4IEC61000-4-4, Level 4
EMS — SurgeIEC61000-4-5, Level 4IEC61000-4-5, Level 4IEC61000-4-5, Level 4IEC61000-4-5, Level 4

Specifications are taken from the current Energia Max datasheet. Due to continuous product improvement, specifications are subject to change without notice.
